SOCA-01-T-4G50 Smart 4G
Its Own 4G Connection, For Sites With No Router.
The Smart controller carries an LTE module and takes a SIM of its own, so it measures and reports from a site with no router to borrow from. SIM not included.
Who Picks This
Pick this for CCTV towers, telemetry sites and anywhere with no router to use, and as the donor antenna mount for a booster or DAS.
How It Works On Site
Mount. Two V-bolts on a pole 25 to 57 mm in diameter. The supplied antenna pole carries the directional antenna above it.
Add a SIM. One slot in the controller. The access point name is set at commissioning and the data sits on the customer's own account.
Scan, then re-aim. Twelve positions, alignment in under five minutes, and the scan re-run from the app or the web portal whenever the network moves.
The Numbers

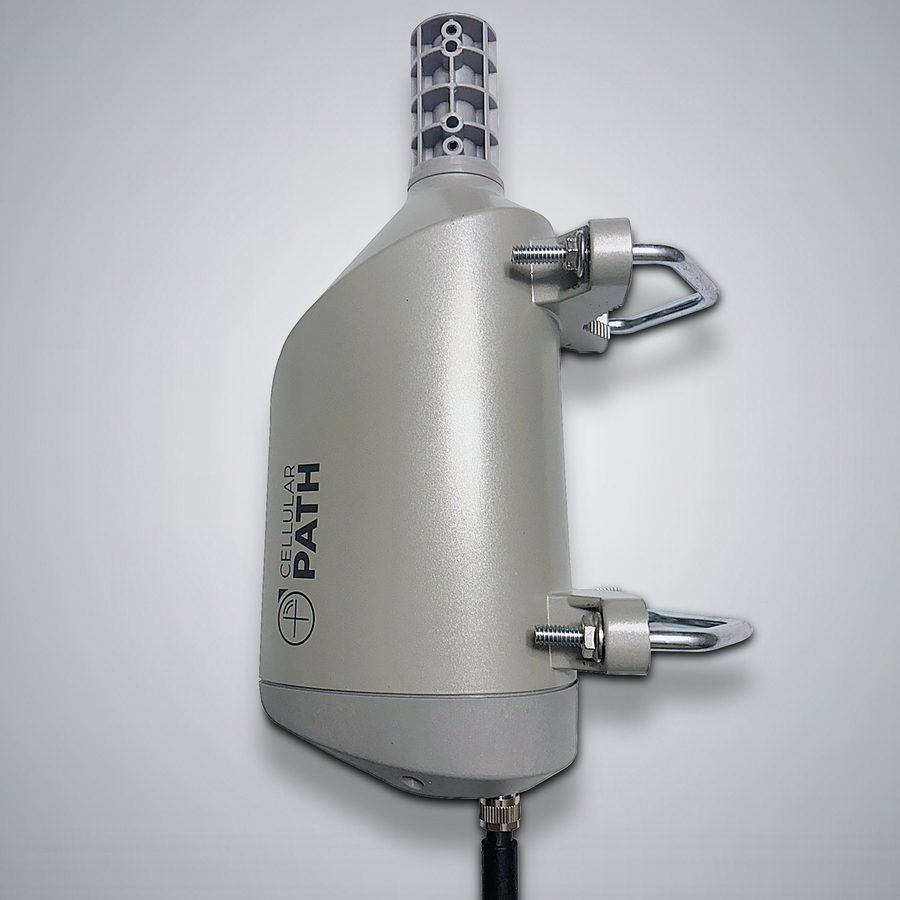

- Rotator
- Die-cast aluminium and glass-filled polycarbonate. 2.3 kg, and 590 mm overall with the supplied 356 mm antenna pole in place
- Mounting
- Two V-bolts on a pole 25 to 57 mm in diameter. Maximum antenna weight 36 kg, the lower of Cellular Path's two published figures
- Wind
- 97 km/h sustained, gusts to 145 km/h
- Rotator rating
- IPX2, minus 29 to 60 C
- Controller
- An indoor unit with no ingress rating. It belongs in the building, cabinet or enclosure, not on the pole
- Cable
- 15 m power and control on a four-pin M12, supplied. Extensions of 15 m and 30 m
- Power
- 12 V DC from a 2 A supply, 24 W maximum
- Module
- Telit CMB100A0-WW, with one SIM slot in the controller
- Bands
- UK-tested: LTE 1, 3, 7, 8, 20, 28. The datasheet lists the rest
- Antenna
- SISO directional on a single coax run, into two SMA female ports at 50 ohm

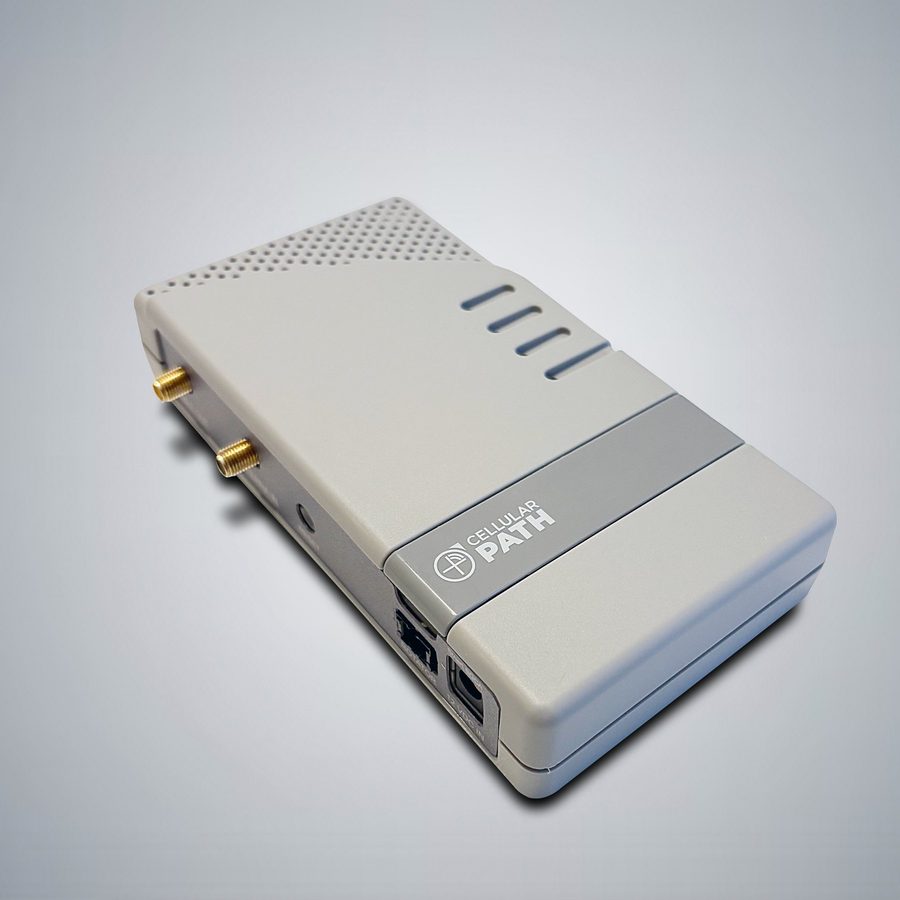

- Controller
- PC/ABS. 152 x 81 x 33 mm, 0.23 kg. 2.4 GHz Wi-Fi and Bluetooth for pairing
Cellular Path figures. Its two datasheets give the maximum antenna weight as 80 lb and 100 lb for the same rotator; we publish the lower until Cellular Path confirms one figure.
- Supplied
- Rotator, controller, 356 mm antenna pole, two V-bolts, 15 m power and control cable
- Not supplied
- The SIM, the directional antenna, the coax and the mounting pole
The Other Model
Already a verified cellular router on site? SOCA-02 No Modem uses it and costs less.
