SOCA-02 No Modem
Uses The Router You Already Install.
No second modem and no second SIM. The controller joins the router's own 2.4 GHz network and reads that router's figures while the rotator scans.
Who Picks This
Pick this when the site already has a cellular router Cellular Path has verified. It suits most router partner and rural wireless jobs.
How It Works On Site
Mount. Two V-bolts on a pole 25 to 57 mm in diameter. The supplied antenna pole carries the directional antenna above it.
Pair. The controller joins the router's 2.4 GHz network. Take the router's wireless credentials and its administrator login to site.
Scan, then re-aim. Twelve positions, alignment in under ten minutes, and the scan re-run from the app or the web portal whenever the network moves.
The Numbers

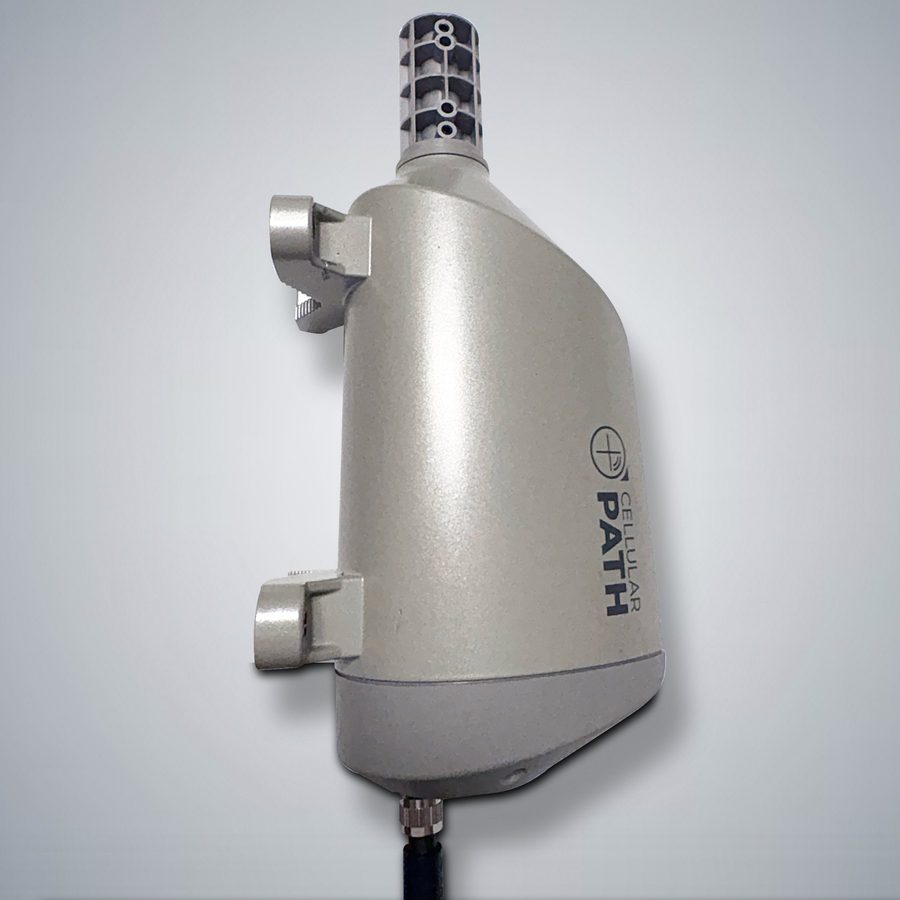

- Rotator
- Die-cast aluminium and glass-filled polycarbonate. 2.3 kg, and 590 mm overall with the supplied 356 mm antenna pole in place
- Mounting
- Two V-bolts on a pole 25 to 57 mm in diameter. Maximum antenna weight 36 kg, the lower of Cellular Path's two published figures
- Wind
- 97 km/h sustained, gusts to 145 km/h
- Rotator rating
- IPX2, minus 29 to 60 C

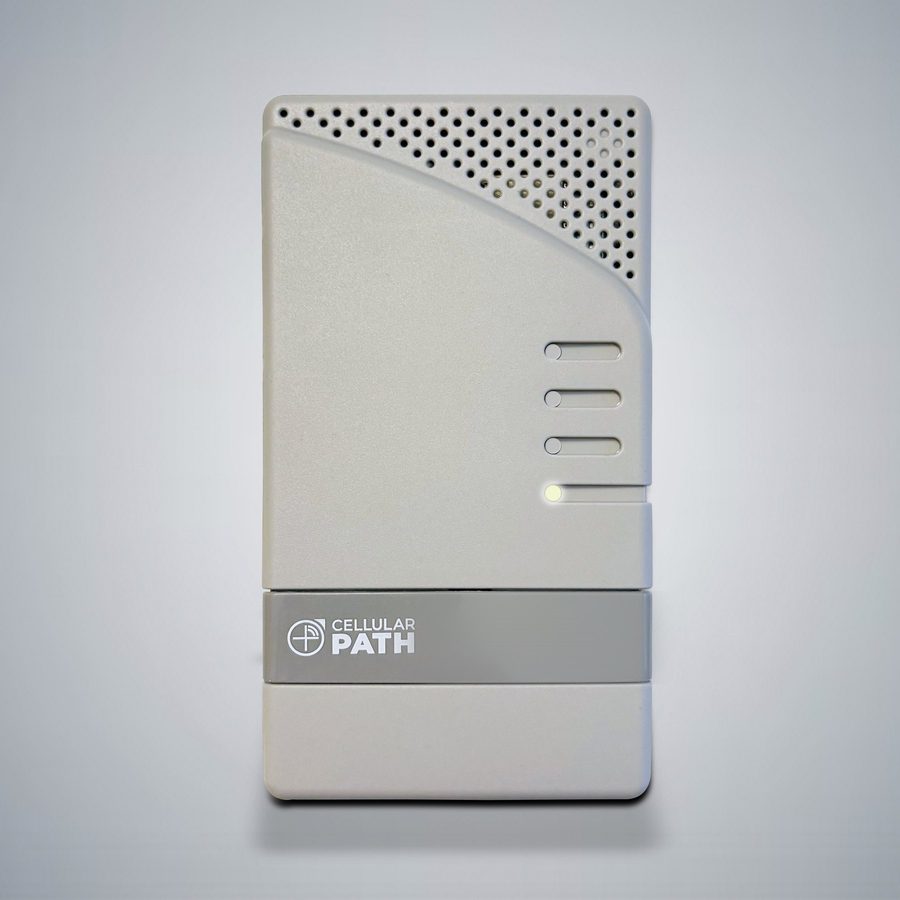

- Controller
- An indoor unit with no ingress rating. It belongs in the building, cabinet or enclosure, not on the pole
- Cable
- 15 m power and control on a four-pin M12, supplied. Extensions of 15 m and 30 m
- Power
- 12 V DC from a 2 A supply, 24 W maximum
- Antenna
- MIMO, two by two or four by four, on multiple coax runs to the indoor router
- Controller
- PC/ABS. 152 x 81 x 33 mm, 0.23 kg. 2.4 GHz Wi-Fi with WPA2-PSK and WPA2-Enterprise, Bluetooth for pairing
- Modem
- None. The site's own router carries the modem and the SIM
Cellular Path figures. Its two datasheets give the maximum antenna weight as 80 lb and 100 lb for the same rotator; we publish the lower until Cellular Path confirms one figure.
- Supplied
- Rotator, controller, 356 mm antenna pole, two V-bolts, 15 m power and control cable
- Not supplied
- The directional antenna, the coax, the router and the mounting pole
Will It Work With My Router?
It reads the router's own figures, so the router has to be one Cellular Path has verified. That is seven models from four makers so far, and the UK variants are still being confirmed. Ask and we'll email the current list.
No router to use? SOCA-01-T-4G50 Smart 4G has its own 4G module.
Ready To Sell SOCA?
Limited companies and sole traders can apply. Five questions, and nothing is binding until both sides sign.
